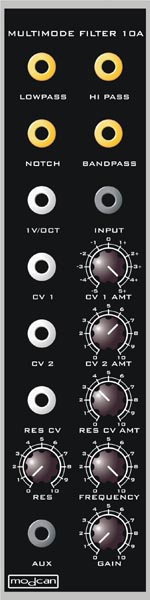

12 dB 2 pole Multimode filter with Voltage controlled resonance. This is a very versatile filter and an excellent choice in a small system where maximum sonic flexibility is required. The 10A has an onboard VCA which controls the level into the filter. A switch selectable input provides AC or DC operation. In DC mode sub- audio signals can be processed.

Four simultaneous outputs available:



1V per octave response input
1 CV input with +/- attenuator
1 CV input with standard attenuator
Resonance CV input with attenuator
VCA level CV input and Level Control
Switch to select AC or DC coupling on the input.

Lowpass sweep mp3
Lowpass sample 2 mp3
Highpass mp3
Notch sample mp3
Bandpass sample mp3
